AC Moving Iron Sq 96 Panel Ammeters & Voltmeters

Name: AC Moving Iron Sq 96 Panel Ammeters & Voltmeters
Brand: RADISSON INSTRUMENTS
Price: 240 INR
Availability: InStock

Price 240 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

AC Moving Iron Sq 96 Panel Ammeters & Voltmeters Specification

Sensor Type
Moving Iron Mechanism

Frequency
50/60 Hz

Equipment Type
Moving Iron Panel Meter

Capacity
96 x 96 mm Panel Size

Resolution
Fine Pointer Resolution

Material
ABS Plastic Housing with Glass Front

Power Supply
230V / 440V AC, 50/60Hz

Power Consumption
Low Power Consumption

Accuracy
Class 1.5

AC Moving Iron Sq 96 Panel Ammeters & Voltmeters Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
4000 Pieces Per Month

Delivery Time
1-3 Week

About AC Moving Iron Sq 96 Panel Ammeters & Voltmeters

AC Moving Iron Sq 96 Panel Ammeters & Voltmeters

Product Specification

Model	TC 96

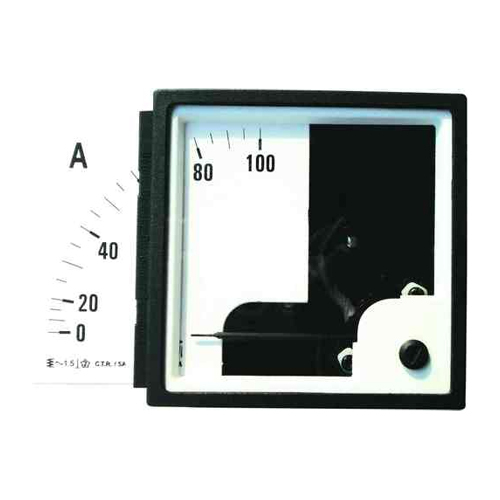

Description	Moving iron meter of 90° deflection with interchangeable scale facility.
Movement Type	Moving iron spring-mounted jewel bearing suspension
Accuracy	± 1.5% of full scale as per IS 1248
Range	Current (A): 0-1A to 1-100A (Direct), Through CT/1A or /5A for Higher Currents Voltage (V): 0-50V to 0-600V (Direct), Through PT for Higher Voltages
Self Consumption	Ammeters (upto 5A AC) - < 0.6 VA; Voltmeters (upto 500V AC) - < 5Va
Operating Voltage	600V RMS max.
Test Voltage	2.5 time for 1 min. at 50 hz
Construction and Design	According to IS 1248;
Scale	According to DIN 43802
Case/Housing Material	Black Nylon dimensions as per DIN 43700
Bezel	Black Polycarbonate & Nylon Glass filled dimensions as per DIN 43718
Glass Faceplate	Flat Glass, Antiglare and Polycarbonate (shatter proof) on request.
Mounting Fasteners / Clamps	Ergonomic easy mountable nuts for easy installation on switchboards, panels, Mosaics etc. Dual Clamping option in a single meter fulfills clamping requirements for all types of panels.
Temperature Conditions	-10°C to 55°C, RH<90% (Operating) and
Front Protection	IP52 protection as per IS 2147.IP54 (Optional)
Terminal Protection	Back cover for IP20 terminal protection as per IS 2147 (Optional)

Precision Measurement for AC Circuits

Our Moving Iron Sq 96 Panel Ammeters & Voltmeters deliver high accuracy for AC current and voltage monitoring. Designed for consistency, these instruments feature Class 1.5 accuracy and fine pointer resolution, ensuring precise readings in demanding environments. Ideal for industrial and commercial electrical panels, they help maintain optimal performance and safety.

Durability and Low Power Usage

The rugged ABS plastic housing and glass front offer long-term reliability, while the moving iron mechanism guarantees stability over years of operation. Their low power consumption makes them energy efficient, lowering operational costs without compromising measurement quality. These meters fit seamlessly into standard 96 x 96 mm panel cutouts.

FAQs of AC Moving Iron Sq 96 Panel Ammeters & Voltmeters:

Q: How accurate are the AC Moving Iron Sq 96 Panel Ammeters & Voltmeters?

A: These meters provide high precision with Class 1.5 accuracy, making them suitable for critical monitoring tasks in industrial and commercial settings.

Q: What is the recommended installation process for these panel meters?

A: Install the meter into a standard 96 x 96 mm panel opening, ensuring secure mounting. Connect it to the appropriate 230V or 440V AC supply following safety guidelines for electrical installations.

Q: When should I consider using a moving iron panel meter instead of a digital meter?

A: Moving iron meters excel in environments where durability, low power consumption, and simple analog readouts are valued, especially for continuous AC monitoring.

Q: Where can these panel meters be used effectively?

A: They are ideal for power distribution panels, generator control panels, and other electrical systems in factories, utilities, and commercial buildings.

Q: What benefits do these meters offer compared to conventional ammeters and voltmeters?

A: They offer robust construction, reliable moving iron mechanism, energy efficiency, and precise analog readings, making them cost-effective for long-term use.
