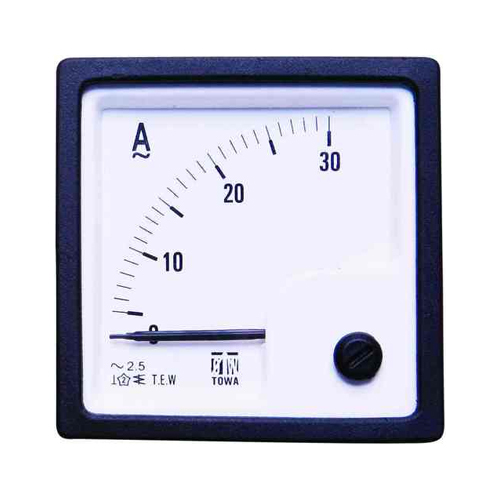

AC Moving Iron Sq 96 Double Range Meters (2-in-1)

Name: AC Moving Iron Sq 96 Double Range Meters (2-in-1)
Brand: RADISSON INSTRUMENTS
Price: 240 INR
Availability: InStock

Price 240 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

AC Moving Iron Sq 96 Double Range Meters (2-in-1) Specification

Equipment Type
Panel Meter (Moving Iron Type)

Current Range
As per double range configuration

Frequency
50/60 Hz

Capacity
Designed for continuous operation

Temperature Range
0C to 45C (operating)

Sensor Type
Moving Iron Mechanism

Resolution
Fine scale graduation for precise readings

Power Consumption
Low, suitable for panel mounting

Accuracy
1.5% of F.S.R.

AC Moving Iron Sq 96 Double Range Meters (2-in-1) Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
4000 Pieces Per Month

Delivery Time
1-3 Week

About AC Moving Iron Sq 96 Double Range Meters (2-in-1)

AC Moving Iron Sq 96 Double Range Meters (2-in-1)

Product Specification

Model	TDi 96
Description	Moving iron meter of 90° deflection.
Application	2 in 1 series Panel Meters simultaneously measures 2 electrical parameters in single 96 x 96 mm meter.
Movement Type	Moving iron spring-mounted jewel bearing suspension
Types	Voltage + Voltage, Ampere + Ampere, Voltage + Ampere
Accuracy	± 1.5% of full scale as per IS 1248
Range	Current (A): 0-1A to 1-30A (Direct), Through CT/1A or /5A for Higher Currents Voltage (V): 0-50V to 0-600V (Direct), Through PT for Higher Voltages
Self Consumption	Ammeters (upto 5A AC) - < 0.6 VA; Voltmeters (upto 500V AC) - < 5Va
Operating Voltage	600V RMS max.
Test Voltage	2.5 time for 1 min. at 50 hz
Construction and Design	According to IS 1248;
Case/Housing Material	Black Nylon dimensions as per DIN 43700
Bezel	Black Polycarbonate & Black ABS
Glass Faceplate	Flat Glass
Mounting Fasteners / Clamps	Ergonomic easy mountable clamps and nuts for easy installation on switchboards, panels, Mosaics etc.
Temperature Conditions	-10°C to 55°C, RH<90% (Operating) and
Panel Cutout	90 x 90 mm

Precise Double Range Measurement

This AC Moving Iron Sq 96 Meter features a double range configuration, allowing for flexible usage across a wider span of current levels. The fine scale graduation provides enhanced resolution, while a 1.5% F.S.R. accuracy ensures precise and trustworthy readings, critical for demanding electrical applications.

Designed for Endurance and Efficiency

Engineered to operate continuously, the panel meter consumes minimal power, reducing energy costs. Designed to withstand operating temperatures from 0C to 45C, it reliably supports extended application in diverse environments, making it a preferred choice for panels in various sectors.

User-Friendly Installation and Operation

The meter supports standard panel mounting, facilitating easy installation by professionals and technicians. Its clear analog display and robust construction streamline the monitoring process, making it suitable for regular inspection, troubleshooting, and ongoing electrical system management.

FAQs of AC Moving Iron Sq 96 Double Range Meters (2-in-1):

Q: How does the double range configuration of this panel meter benefit its users?

A: The double range configuration allows the meter to measure currents within two distinct ranges, enhancing flexibility and enabling one instrument to cover a broader application spectrum with maintained accuracy.

Q: What is the primary usage of the AC Moving Iron Sq 96 Double Range Meter?

A: This panel meter is primarily used for accurate measurement of AC current in electrical panels of industrial, commercial, and infrastructural setups, thanks to its precision and reliability.

Q: When should this meter be installed in an electrical panel?

A: It should be installed when continuous, precise monitoring of alternating current is necessary, especially in systems requiring the ability to handle fluctuating current loads within set limits.

Q: Where can the AC Moving Iron Sq 96 Double Range Meter be mounted?

A: This meter is designed specifically for panel mounting, making it an ideal choice for centralized monitoring stations, distribution panels, and control boards.

Q: What is the process for installing this moving iron panel meter?

A: To install, integrate the meter into the panel using the provided mounting provisions, ensuring proper electrical connections in accordance with the double range configuration and following standard safety protocols.

Q: How does the moving iron mechanism ensure accurate readings?

A: The moving iron mechanism delivers robust and consistent readings by responding proportionally to different current strengths, supported by fine graduations and a stable mechanical system, ensuring accuracy across its defined ranges.

Q: What advantages does the AC Moving Iron Sq 96 meter offer for continuous operation?

A: Designed for extended use, the meter operates efficiently with low power consumption, accurately monitors currents for prolonged periods, and is suitable for environments between 0C and 45C, making it dependable for ongoing requirements.
