Moving Iron Analog Voltmeter

Name: Moving Iron Analog Voltmeter
Brand: RADISSON INSTRUMENTS
Price: 240 INR
Availability: InStock

Price 240 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Moving Iron Analog Voltmeter Specification

Measurement Range
0500V (customizable)

Frequency
4065 Hz

Resolution
1V (approx., depending on scale)

Capacity
Up to 500V AC

Sensor Type
Moving Iron Mechanism

Power Consumption
Negligible (approx. <2VA)

Accuracy
1.5% of FSD

Range
0500V AC (other ranges available)

Moving Iron Analog Voltmeter Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
4000 Pieces Per Month

Delivery Time
1-3 Week

About Moving Iron Analog Voltmeter

We are known for providing Moving Iron Analog Voltmeter to our valued clients. For measuring AC voltage, this meter is ideal to be used in industrial application. Our provided voltmeter is perfect to be installed in the moving iron for measuring purpose. Also, this voltmeter is featured with shatterproof flat glass and anti-glare polycarbonate material. In addition to this, our provided Moving Iron Analog Voltmeter is made from plastic material.

Key features:

Ideal for analog measurement
Compact in size
Rectangular shape

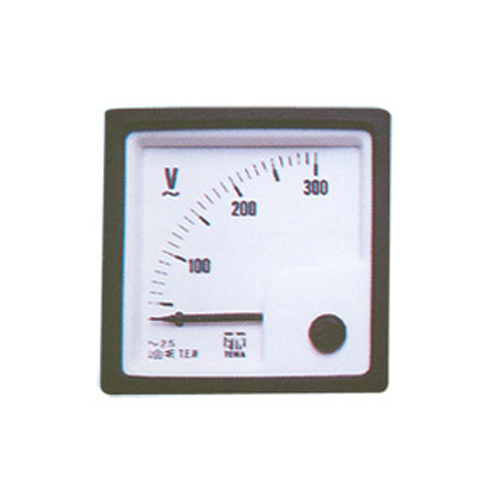

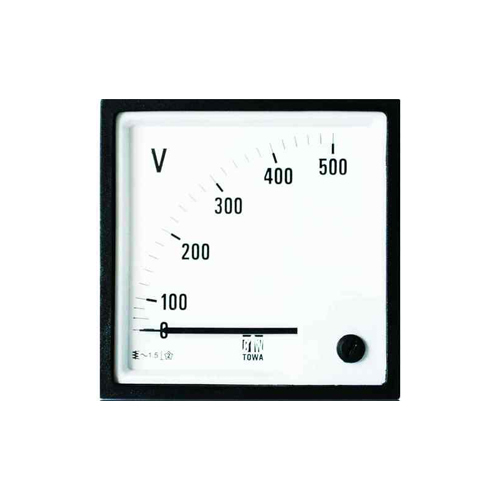

Model	SQ72, SQ96
Description	Moving iron meter of 900 deflection with interchangeable scale facility
Movement Type	Moving iron spring-mounted jewel bearing suspension
Accuracy	+ 1.5% of full scale as per IS 1248
Self Consumption	Ammeters (upto 5A AC) -< 0.6 VA; Voltmeters (upto 500V AC) -<5Va
Operating Voltage	600V RMS max.
Test Voltage	2.5 times for 1 min at 50hz
Construction and Design	According to IS 1248;
Scale	According to DIN 43802
Case/Housing Material	Black, dimensions as per DIN 43700
Bezel	Black ABS, dimensions as per DIN 43718
Glass Faceplate	Flat Glass, Antiglare and Polycarbonate (shatter proof) on request.
Mounting Fasteners/Clamps	Ergonomic easy mountable clamps and nuts for easy installation on switchboards, Panels, Mosaics etc.
Temperature Conditions	-10 0 C to 55 0 C, RH<90% (Operating) and
Front Protection	IP52 protection as per IS 2147.IP54(optional)
Terminal Protection	Back cover for IP20 terminal protection as per IS 2147 (OPTIONAL)

Ammeters Voltmeters
1 x In (A)		2 x In (A)		6 x In (A)
Direct	With CT	Direct	With CT	Direct	with CT	Direct	Ratio and Scale
1A	CTR/5A	1/2A	CTR/5A	1/6A	CTR/5A
5A	CTR/1A	5/10A	CTR/1A	5/30A	CTR/1A	50V	PTR/63.5v	10kv/-
10A	10/-	10/20A	10/20/-	10/60A	10/60/-	60V	PTR/110V	15kv/-
15A	15/-	15/30A	15/30/-	15/90A	15/90/-	75V	PTR/230V	20kv/-
20A	20/-	20/40A	20/40/-	20/120A	20/120/-	100V	PTR/250V	25kv/-
25A	25/-	25/40A	25/50/-	25/150A	25/150/-	110V	PTR/400V	30kv/-
30A	30/-	30/60A	30/60/-	30/180A	30/180/-	150V	PTR/440V	40kv/-
40A	40/-	40/80A	40/80/-	40/240A	40/240/-	250V		50kv/-
50A	50/-	50/100A	50/100/-	50/300A	50/300/-	300V	1 kv/-	60kv/-
60A	60/-	60/120A	60/120/-	60/360A	60/360-	500V	1.2kv/-	75kv/-
75A	70/-	75/150A	75/150/-	75/450A	75/450/-	600V	1.5kv/-	80kv/-
80A	100/-	80/160A	100/200/-	80/480A	100/600-	750V	2kv/-	100kv/-
100A	150/-	100/200A	150/200/-	100/600A	150/900-		2.5kv/-	and higher
	250/-		250/500/-		250/1500/-		3kv
	400/-		400/800/-		400/2400/-		3.5kv
	500/-		500/1000/-		500/3000/-		4kv/-
	600/-		600/1200/-		600/3000/-		5kv/-
	1000/-		1000/20000/-		1000/6000/-		6kv/-
	1500/-		1500/3000/-		1500/9000		7.5kv/-
	and higher		and higher		and higher		8kv/-

Versatile Voltage Measurement

Our Moving Iron Analog Voltmeter is designed to cater to a wide range of voltage monitoring needs. With a default measurement range of 0500V AC and customizable options, it adapts effortlessly to various applications. Its high resolution and accuracy ensure reliable output for engineers and technicians.

Efficient and Reliable Performance

Operating with negligible power consumption, this voltmeter provides accurate readings without contributing significant load to the system. The moving iron mechanism enhances durability while minimizing maintenance, making it a cost-effective solution for long-term voltage monitoring.

Made in India for Global Markets

As a trusted exporter, manufacturer, supplier, and trader from India, we prioritize quality and customer satisfaction. Our voltmeters undergo stringent manufacturing and quality control processes to match international standards, ensuring they meet the needs of professionals worldwide.

FAQs of Moving Iron Analog Voltmeter:

Q: How does the Moving Iron Analog Voltmeter operate?

A: The Moving Iron Analog Voltmeter functions by utilizing a moving iron mechanism, which responds to the magnetic field created by the flow of AC voltage through the coil, resulting in a deflection of the needle on the scale for easy voltage reading.

Q: What type of applications can this voltmeter be used for?

A: This voltmeter is suitable for industrial, commercial, and laboratory use, especially for monitoring and measuring AC voltages within the 0500V range. Customizable ranges allow it to cater to other specific voltage measurement needs as well.

Q: When is it beneficial to use a moving iron voltmeter instead of a digital one?

A: A moving iron voltmeter is beneficial when durability, simplicity, and cost-effectiveness are prioritized. It offers reliable operation in environments where digital meters might be affected by electronic noise or require more maintenance.

Q: Where can I procure this Moving Iron Analog Voltmeter?

A: This voltmeter is available for purchase through our company, which serves as an exporter, manufacturer, supplier, and trader based in India. We ship to domestic and international clients, supporting diverse industrial and commercial sectors.

Q: What is the process for customizing the measurement range of the voltmeter?

A: To request a customized measurement range, contact our sales team with your specific requirements. We will discuss your application needs and configure the voltmeters scale and internal components accordingly before shipment.

Q: How should the voltmeter be properly used and maintained?

A: For optimal performance, install the voltmeter according to the provided instructions and ensure it operates within the designated voltage and frequency ranges. Periodic calibration and gentle handling of the instrument help maintain accuracy and prolong its lifespan.

Q: What are the key benefits of using this Moving Iron Analog Voltmeter?

A: Key benefits include high accuracy (1.5% FSD), negligible power consumption, wide measurement range, robust moving iron mechanism, and customizable configurations to match various applications, making it a practical choice for reliable voltage monitoring.
